Have you considered window shrouds for your next architectural project? Designed to increase shading and privacy, window shrouds offer an effective solution for thermal efficiency.
In this article, we focus on the function and form of window shrouds and discuss how they contribute to sustainable building design.
Key benefits of window shrouds
The five key advantages of window shrouds include shade control, energy efficiency, privacy, weather protection, and aesthetic appeal.
Sun shading
By extending outwards from the window frame, a shroud blocks harsh sunlight from a certain angle. This minimises damage caused by UV light and reduces unwanted heat and glare.
Energy efficiency
By deflecting excessive heat from the sun, window shrouds help maintain a comfortable temperature within a building. This reduces the need for air conditioning, resulting in lower energy consumption and more sustainable living. This also contributes to a property's home star rating.
For specifications and technical information regarding our window shrouds, download our PS1 document.
Architect’s tip - Pair window shrouds with louvre blades
For increased shading, put louvre blades inside the shroud frame to reduce solar gain. Fixed louvres will increase shading and operable louvres will provide shading flexibility.
Increased privacy
By obscuring the direct view from above, below, and the sides, a window shroud creates a feeling of seclusion and separation.
Protection against the elements
Aluminium window shrouds improve the lifespan of your windows and protect your interior from the elements.
Aesthetic appeal
In addition to functionality, window shrouds can be an aesthetic finishing touch or an architectural detail. A window shroud adds texture and depth to the exterior facade, making your development stand out. When you choose an Aurae window shroud, you can specify a range of powder coat colours to complement your overall design.
Aluminium window shroud detail and specifications
Window shrouds are an effective sun-shading solution, along with louvres and perforated screens. If you want to incorporate window shrouds in your next architectural project, you’ll need to consider design integration, functionality, and regulatory compliance.At Aurae, our window shrouds are available in multiple standard sizes and can also be customised to the size you want.
- Standard sizes range from 100x50mm to 450x50mm.
- Thinner profiles are available down to 20mm wide.

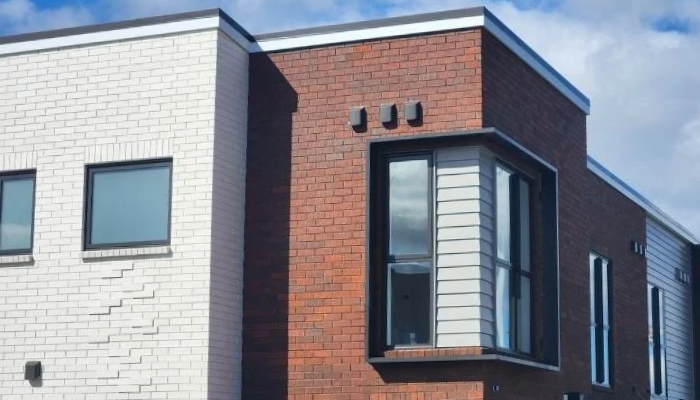

Standard window shroud design
Standard shrouds comprise a box frame surrounding the window. Download our Window Shroud PS1 document for technical specifications.
Custom sheet window shroud
Made with 3mm sheet aluminium, these shrouds offer a sleek and minimal appearance. We can also customise the dimensions on each side, creating a tapered shroud. This also enables greater shading on one side of the window than the other.
Download our Window Shroud PS1 document for technical specifications.
Fixing details
Fixing details for all cladding types are available, including brick, linear cladding, and metal cladding.
Channel bracket
With channel brackets, the window shroud is guided into place and held securely at the edges. This provides a clean, flush installation against the building facade. Keep in mind that the brackets will be visible from the outside.
Angle bracket
Our angle brackets are slotted into the back of the shroud, hiding the bracket from view. This creates a sleek appearance, allowing the shroud to blend seamlessly with the window and building exterior.
Custom brackets
Custom brackets can be designed to ensure the shroud is as close to the window as possible. This prevents a line of cladding from being visible between the window frame and the shroud.
Enquire now to bring your vision to life
Window sun shades for house exterior
In addition to our window shrouds, we have a series of window shading products that filter harsh sunlight, reduce solar gain, and improve internal temperatures. These solutions improve shade control and privacy, enhancing your architectural vision at the same time.

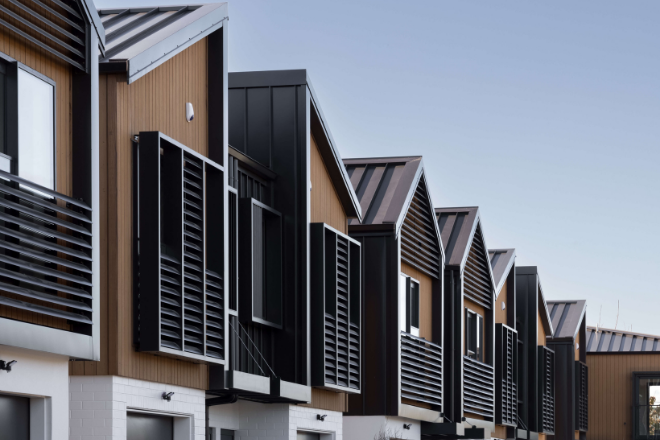

Fixed louvre blades
Our fixed louvres provide shading, privacy, and an eye-catching architectural statement. Several profile shapes and sizes along with multiple fixing details are available.
Fixed louvre blades
Operable louvre blades
Our operable louvres can be manually or electronically rotated to accommodate the homeowner’s needs. They can simply adjust the blades to increase shade, sunlight, or privacy.
Operable louvre blades
Rear pivot louvre system
Our rear pivot louvres are mounted without a perimeter frame, creating a seamless finish on the building. The pivot point is behind the louvre blade, removing the need for a bulky frame.
Rear pivot louvre system
