Aurae louvre system

Rear Pivot Louvre System

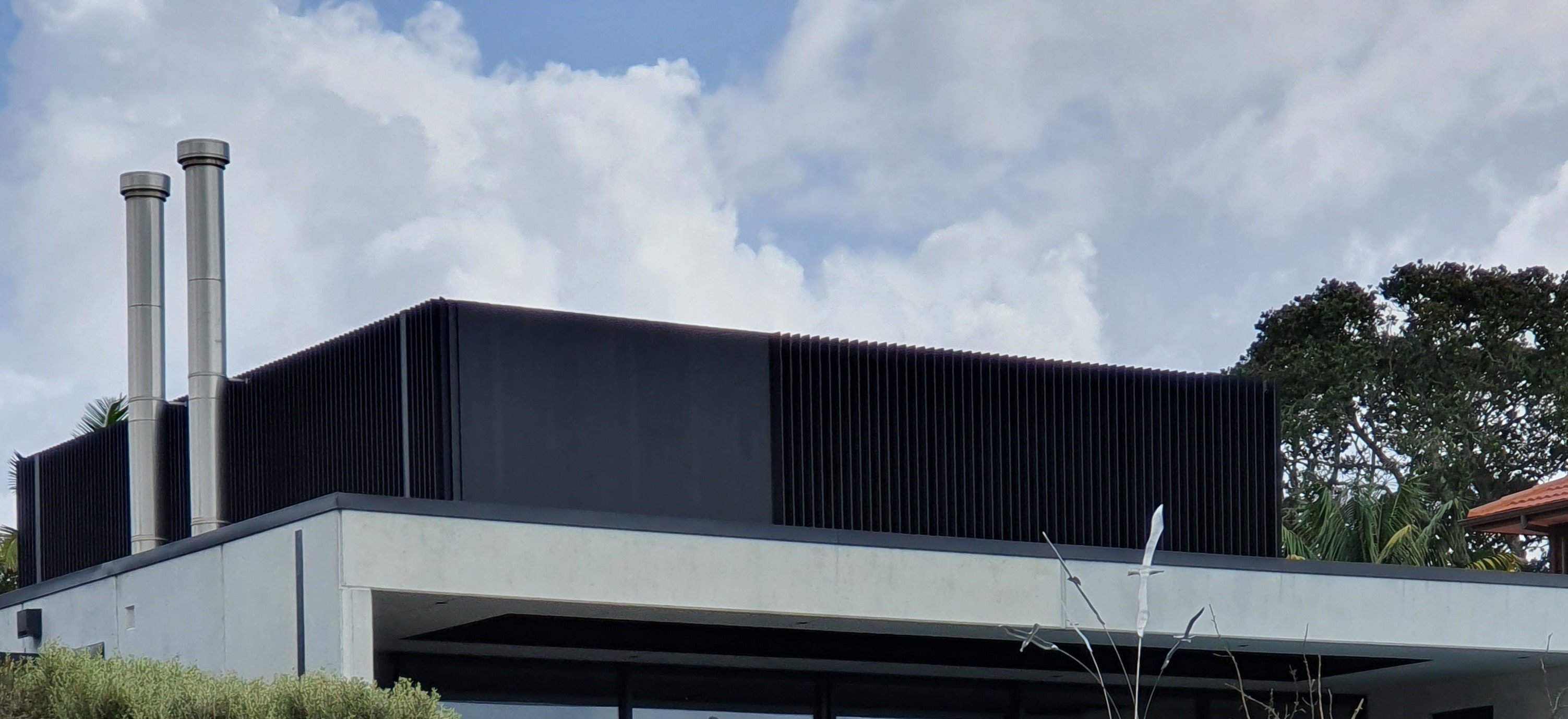

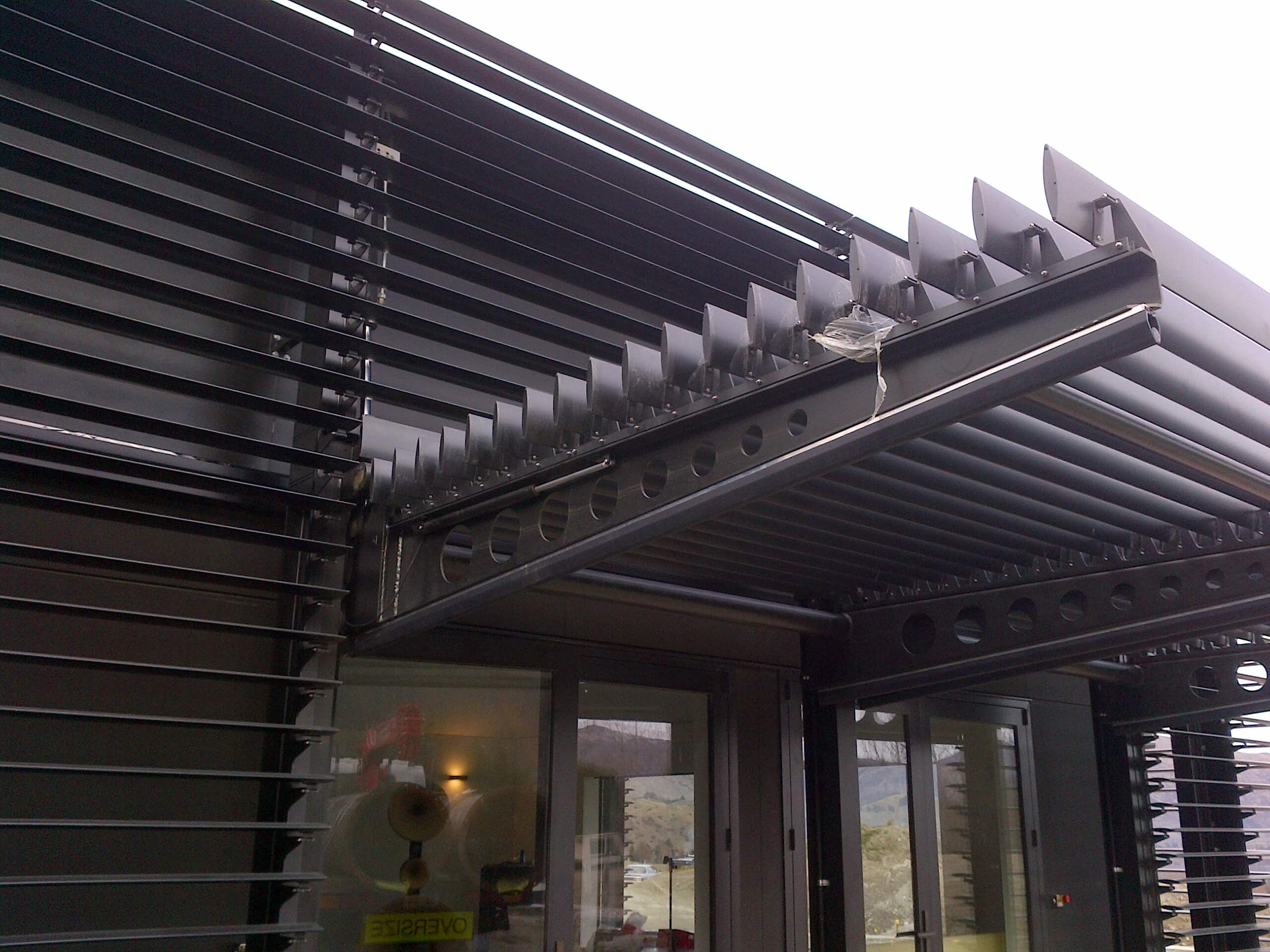

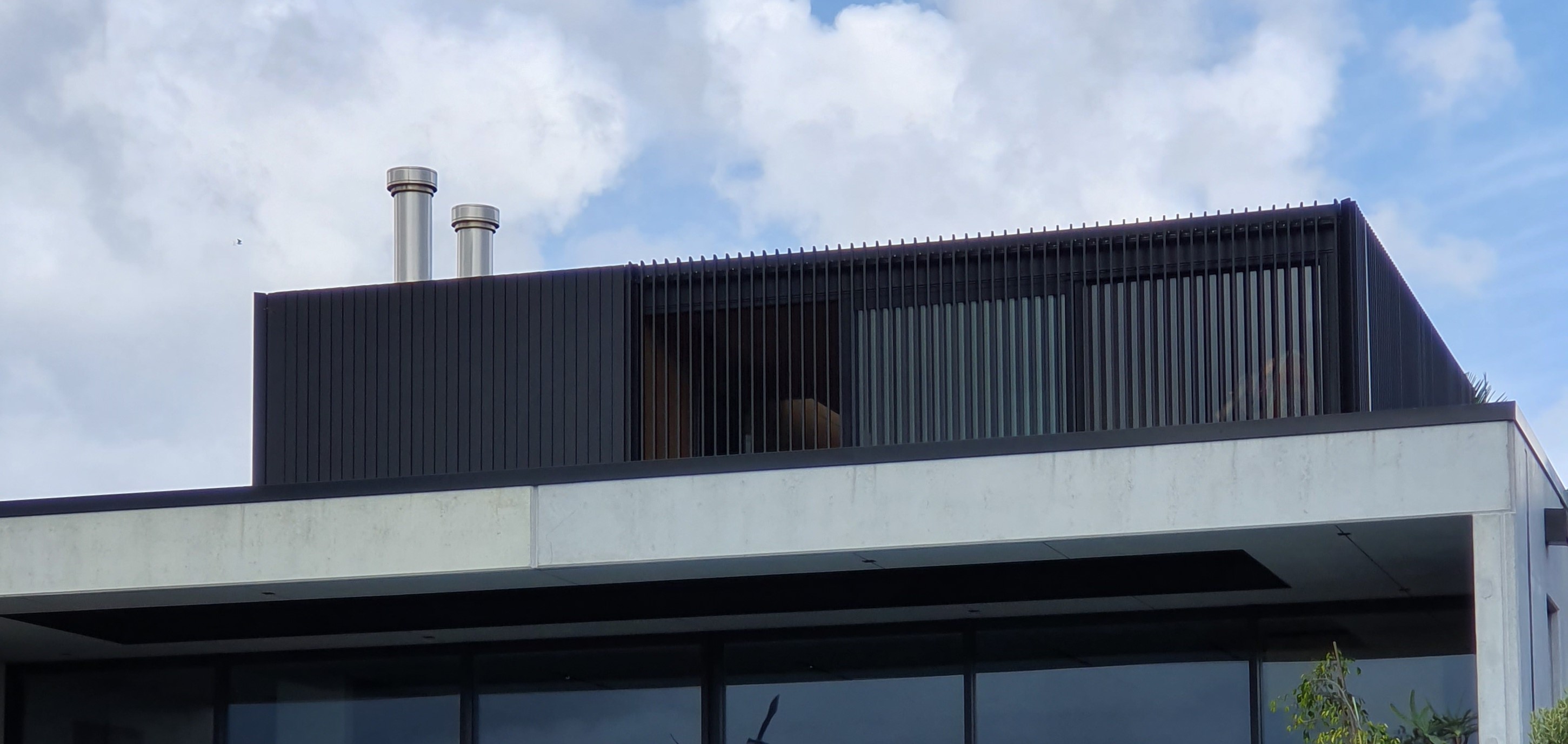

Rear pivot louvre system Rear pivot louvre system with black powder-coat finish Aurae aluminium rear pivot louvres Rear pivot louvre system closed
Rear pivot louvre system Rear pivot louvre system with black powder-coat finish Aurae aluminium rear pivot louvres Rear pivot louvre system closed

Product Overview

The rear pivot louvre system provides the ability to rotate louvre blades, without a perimeter frame.

The rotating action can be either manual or motorised. All motors and electronics can be concealed from view.

Enquire about the rear pivot system

Access Technical Downloads

Features

  • Available in a large range of powder-coat colours (including woodgrain).
  • Engineered to meet ASNZ standards with producer statements available upon request.

Applications

Rear pivot louvre system offers sleek functionality
Sleek functionality

The rear pivot louvre system ensures that the louvre blades rotate seamlessly, without a perimeter frame. A great option for more complex motorised systems.
Rear pivot louvre system offers sleek functionality
Sleek functionality

The rear pivot louvre system ensures that the louvre blades rotate seamlessly, without a perimeter frame. A great option for more complex motorised systems.
The rear pivot system adds aesthetic appeal
Aesthetics

Increase the aesthetics of a home or property with a louvre system that's designed to stand out. All motors and electronics are concealed from view.
The rear pivot system adds aesthetic appeal
Aesthetics

Increase the aesthetics of a home or property with a louvre system that's designed to stand out. All motors and electronics are concealed from view.

Technical Downloads
Aurora 200 Louvre
Technical data sheet (pdf)
DWG data sheet

Available Blade Profiles

Our rear pivot louvre system is available with two blade profiles leaving you with plenty of choice.

Aurora blade
Aurora aluminium louvre blade
Aerofoil shape
75mm to 600mm blade size
Motorised or manually operable
Solaris blade
Solaris aluminium louvre blade
Rectangle shape
110mm to 1,000mm blade size
Motorised or manually operable
Caldera blade
Caldera blade
Parallelogram shape
88mm to 390mm blade size
Motorised or manually operable

Custom Louvre Systems

Want to achieve something unique with louvres? We can work with you to come up with custom louvre solutions that are perfect for your current or future projects.

Some of the custom solutions we have provided to date include louvred fences, chimney cowls, custom balustrades and vehicle gates.

Ready to get started with a custom design? Just enquire with us now by clicking below.

ENQUIRE ABOUT A CUSTOM SOLUTION
Aurae custom louvre solution
